Primary Sizer Oil Cooler Extension
Primary Sizer Oil Cooler Extension
Primary Sizer Oil Cooler Extension
Scope of Work
Two new Hydac oil coolers required installation to the sizer gearboxes after a breakdown. The gearboxes were adjacent to the coolers which caused a high amount of vibration and often resulted in essential maintenance to the Hydac oil coolers.
Scope of Work
Two new Hydac oil coolers required installation to the sizer gearboxes after a breakdown. The gearboxes were adjacent to the coolers which caused a high amount of vibration and often resulted in essential maintenance to the Hydac oil coolers.
Scope of Work
Two new Hydac oil coolers required installation to the sizer gearboxes after a breakdown. The gearboxes were adjacent to the coolers which caused a high amount of vibration and often resulted in essential maintenance to the Hydac oil coolers.
Objectives
Redesign the piping lines that connect from the gearboxes to the coolers.
Rework placement of the system inlet (ball valve).
System outlet (check valve) for the new Hydac cooling systems.
Objectives
Redesign the piping lines that connect from the gearboxes to the coolers.
Rework placement of the system inlet (ball valve).
System outlet (check valve) for the new Hydac cooling systems.
Objectives
Redesign the piping lines that connect from the gearboxes to the coolers.
Rework placement of the system inlet (ball valve).
System outlet (check valve) for the new Hydac cooling systems.
Challenges Involved
The high vibration levels in the area reduced durability of the Hydac cooler. Position of the inlet and outlet on the coolers were different and required configuration. Four stainless steel piping lines required custom designs with stop valves at the ends.
Challenges Involved
The high vibration levels in the area reduced durability of the Hydac cooler. Position of the inlet and outlet on the coolers were different and required configuration. Four stainless steel piping lines required custom designs with stop valves at the ends.
Challenges Involved
The high vibration levels in the area reduced durability of the Hydac cooler. Position of the inlet and outlet on the coolers were different and required configuration. Four stainless steel piping lines required custom designs with stop valves at the ends.

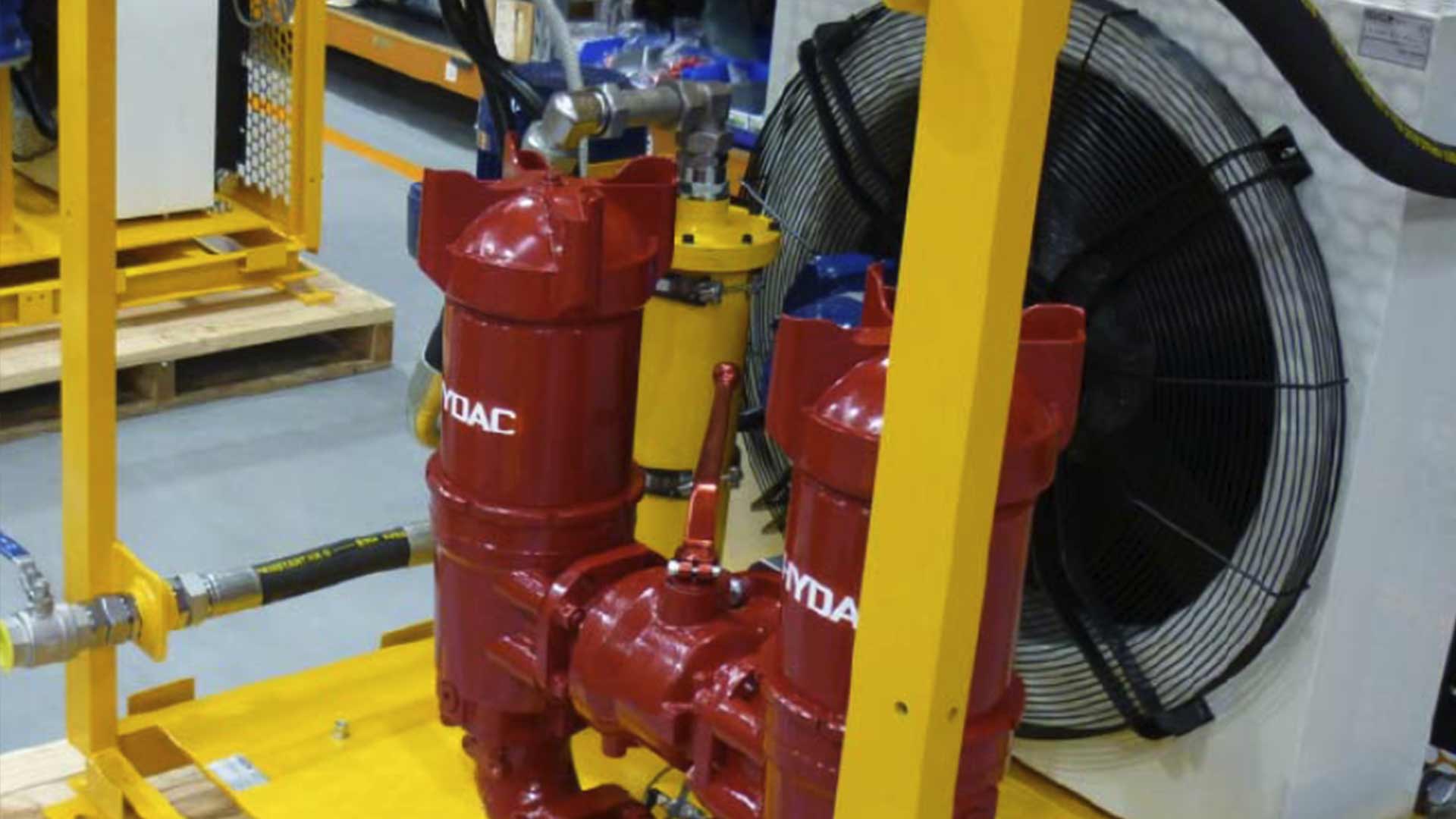

New Hydac oil cooler

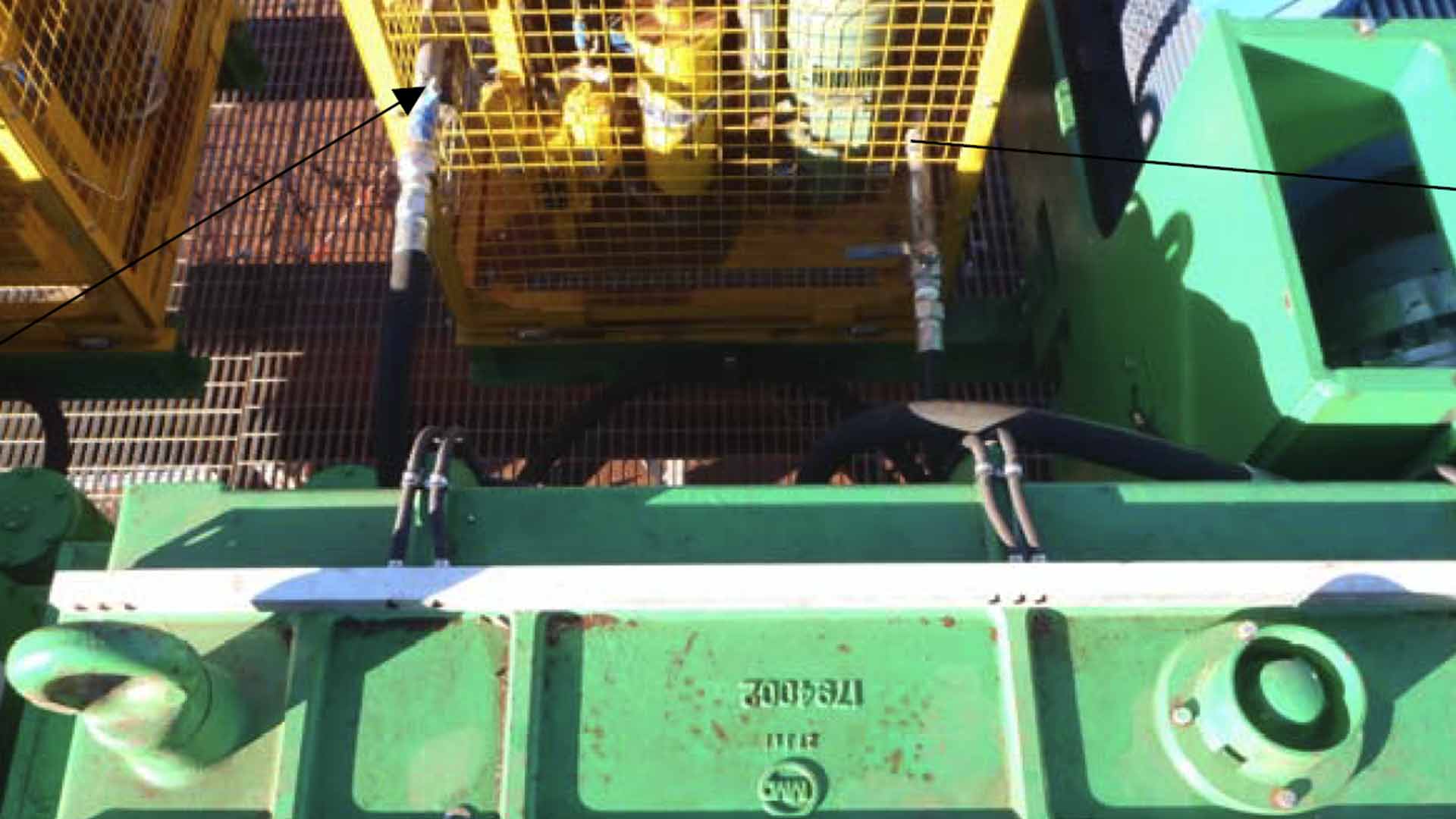

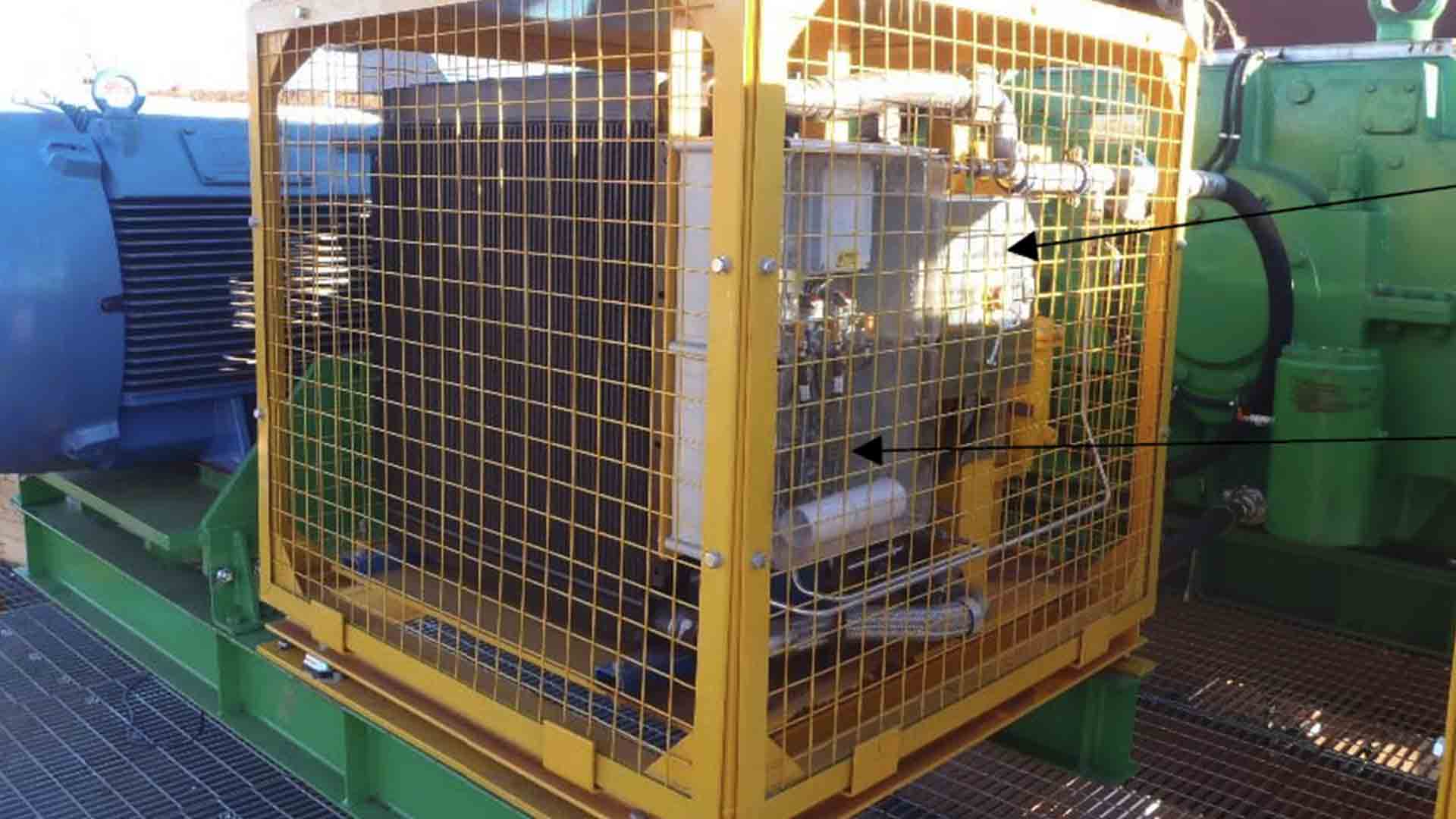

Green gearbox + old cooler view 1
View 2
New Hydac oil cooler
Green gearbox + old cooler view 1
View 2
New Hydac oil cooler
Green gearbox + old cooler view 1
View 2
Innovative Thinking
Creating distance and height between the cooler and the gearbox would significantly reduce vibration. To keep the 16 meters of piping out of harm's way, it was attached underneath the platform's support beams with Stauff rubber profile mount clamps to further reduce the vibration levels.
Innovative Thinking
Creating distance and height between the cooler and the gearbox would significantly reduce vibration. To keep the 16 meters of piping out of harm's way, it was attached underneath the platform's support beams with Stauff rubber profile mount clamps to further reduce the vibration levels.
Innovative Thinking
Creating distance and height between the cooler and the gearbox would significantly reduce vibration. To keep the 16 meters of piping out of harm's way, it was attached underneath the platform's support beams with Stauff rubber profile mount clamps to further reduce the vibration levels.
Accomplishments
The high platform low vibration design successfully improved the durability of the cooler and this same design is now being rolled out to Kings Valley in the Solomon Hub.
Accomplishments
The high platform low vibration design successfully improved the durability of the cooler and this same design is now being rolled out to Kings Valley in the Solomon Hub.
Accomplishments
The high platform low vibration design successfully improved the durability of the cooler and this same design is now being rolled out to Kings Valley in the Solomon Hub.
Stauff clamps

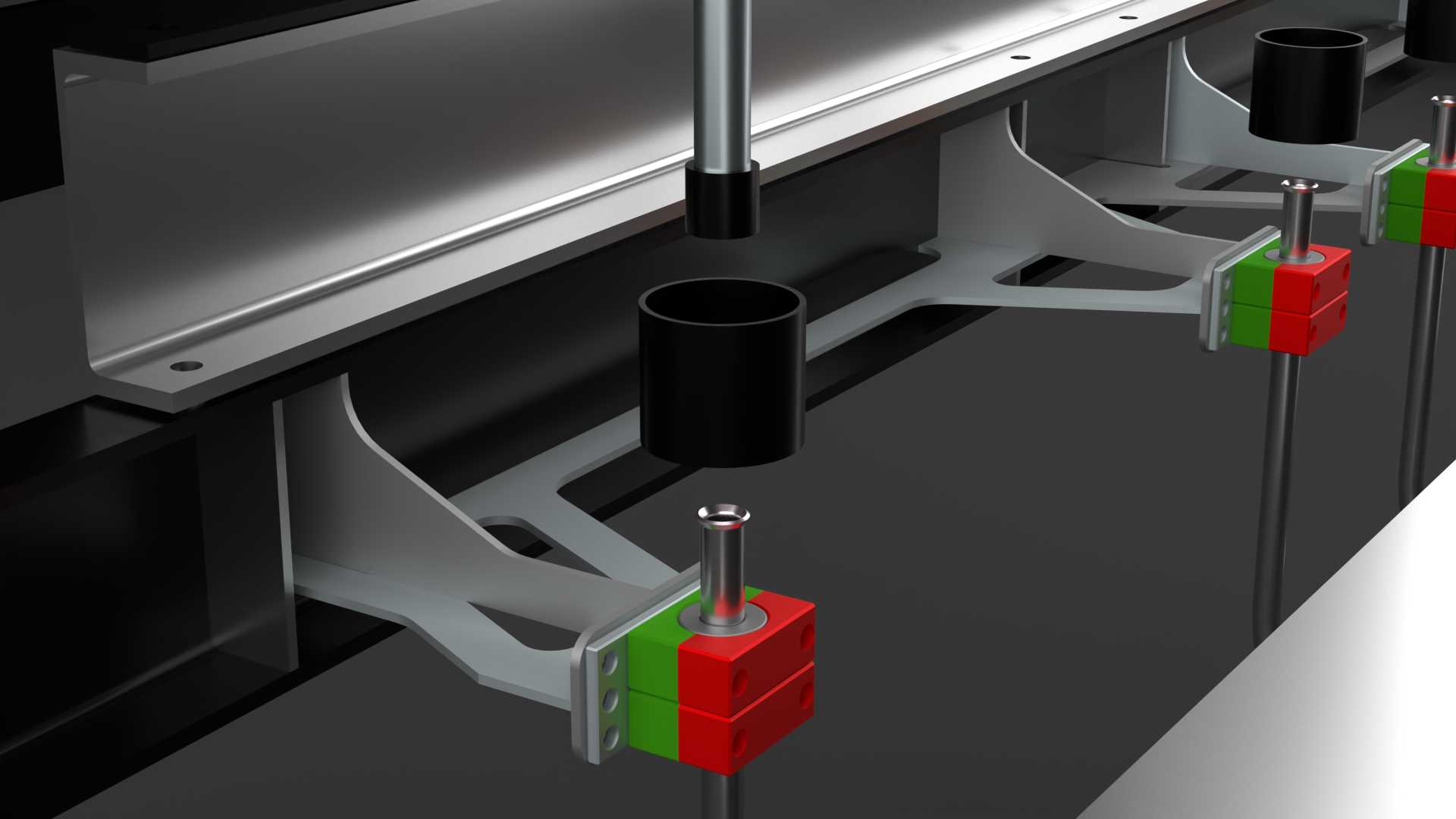

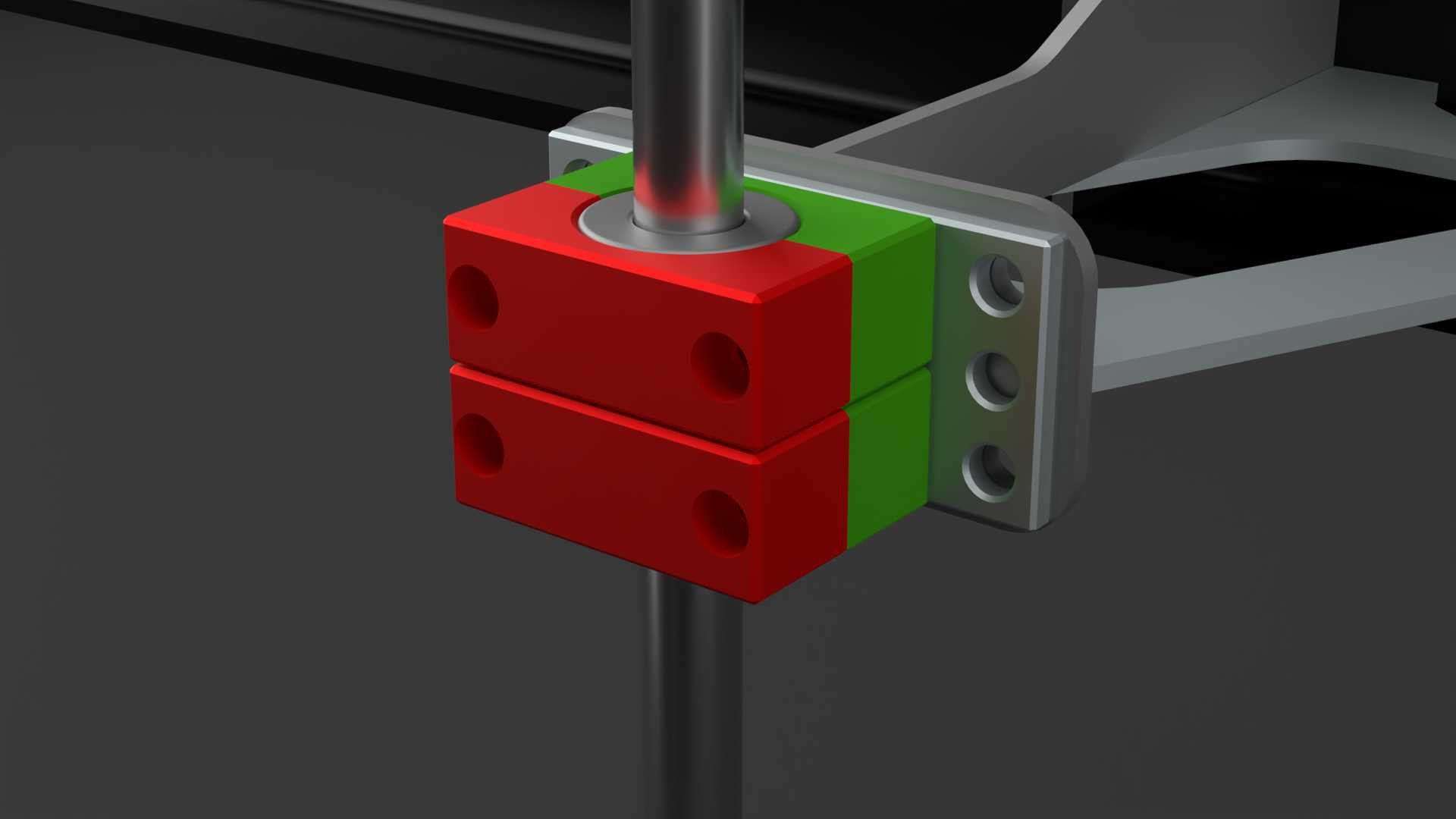

Stauff clamp close up
Stauff clamps
Stauff clamp close up
Stauff clamps
Stauff clamp close up
Primary Sizer Oil Cooler Extension Overview
Primary Sizer Oil Cooler Extension Overview
Primary Sizer Oil Cooler Extension Overview

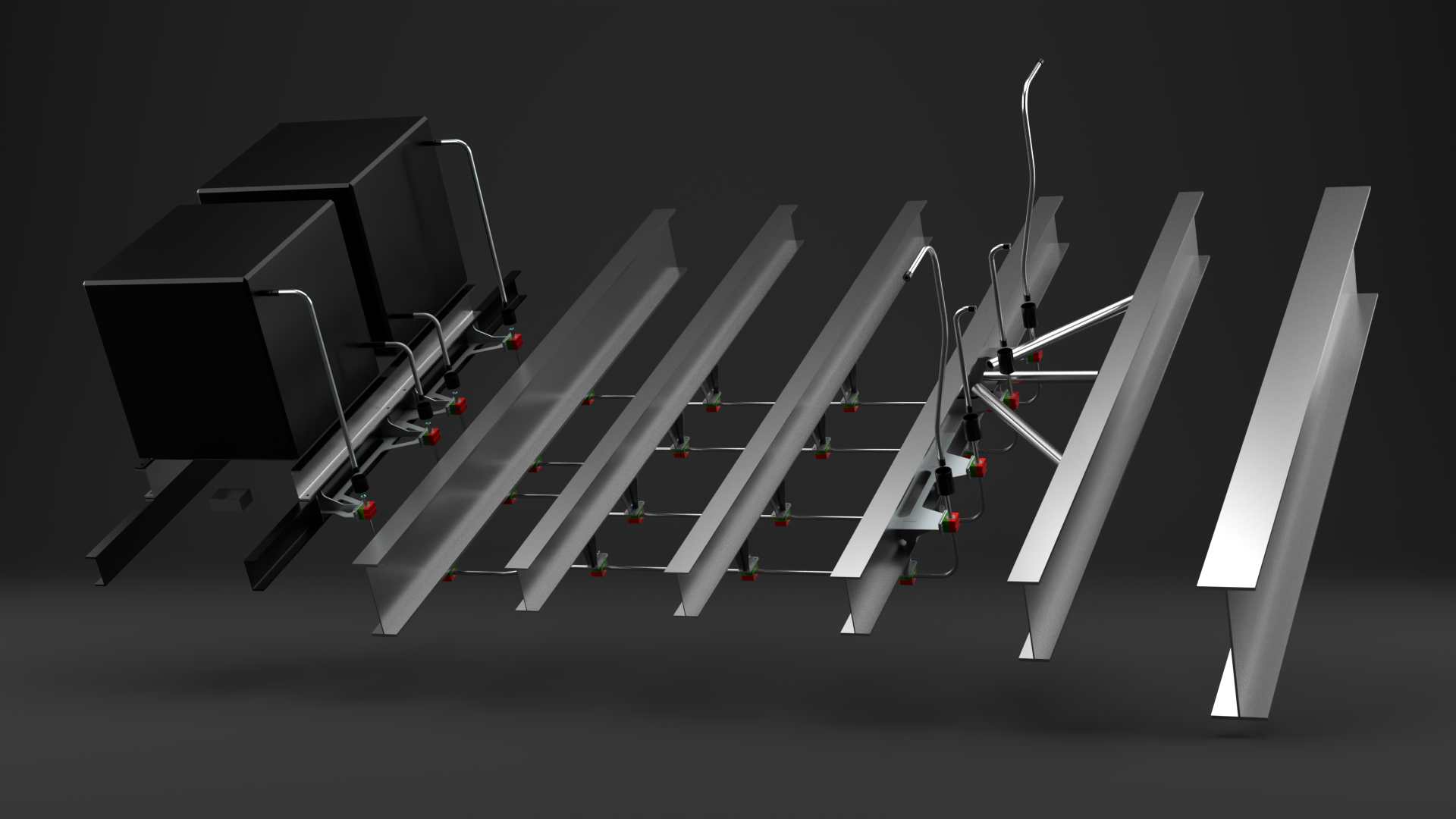

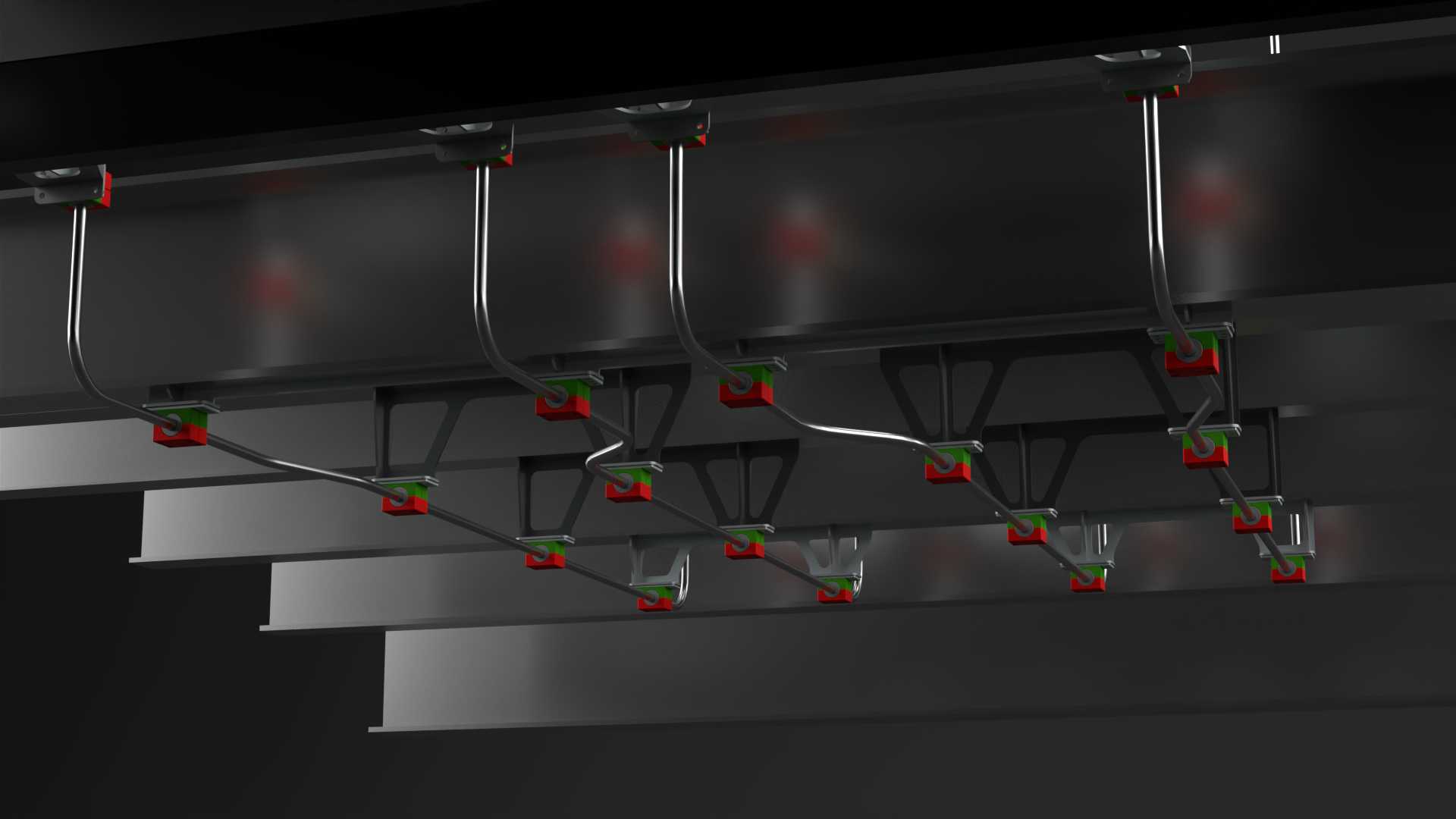

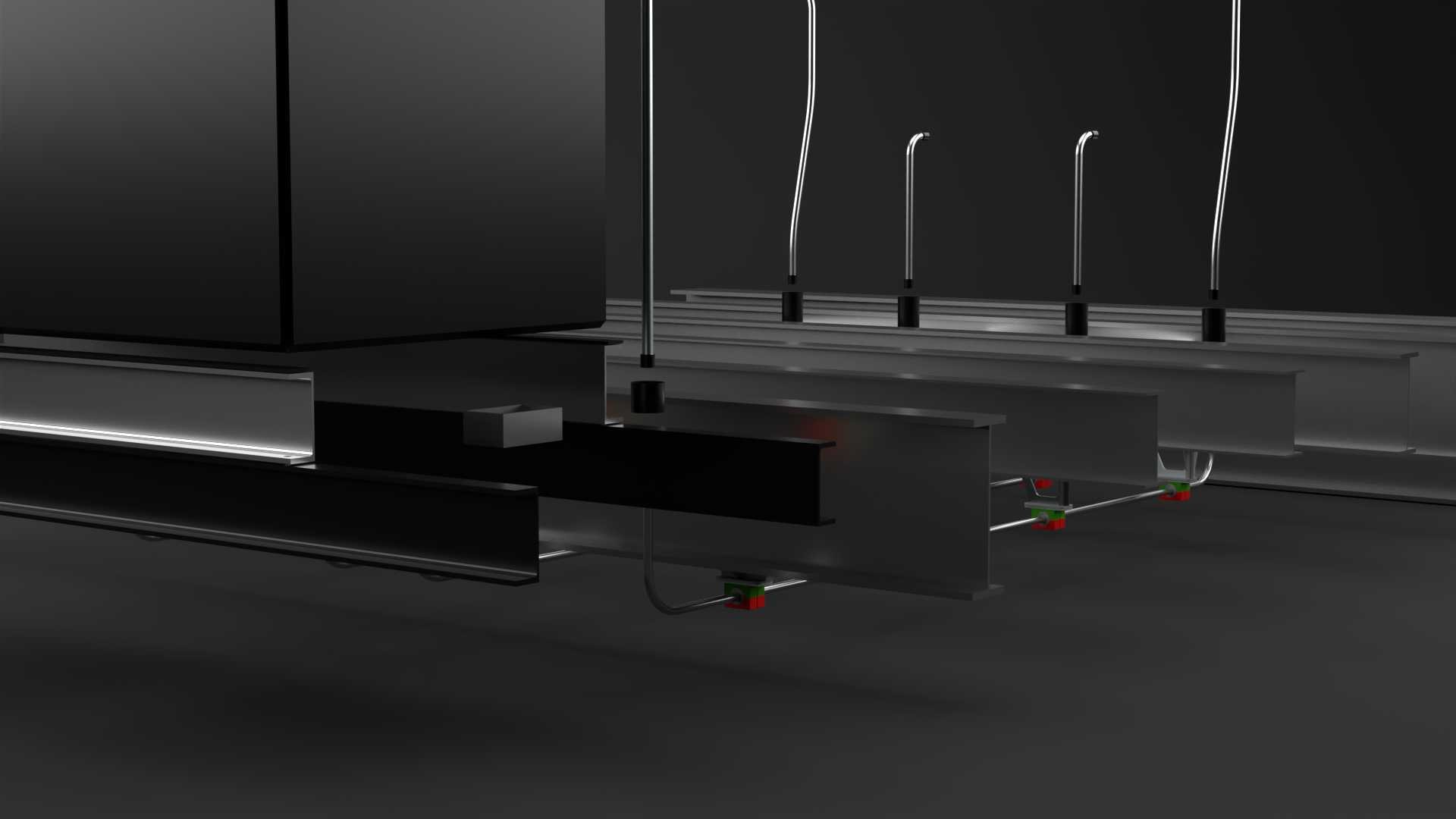

Below - Custom pipe design

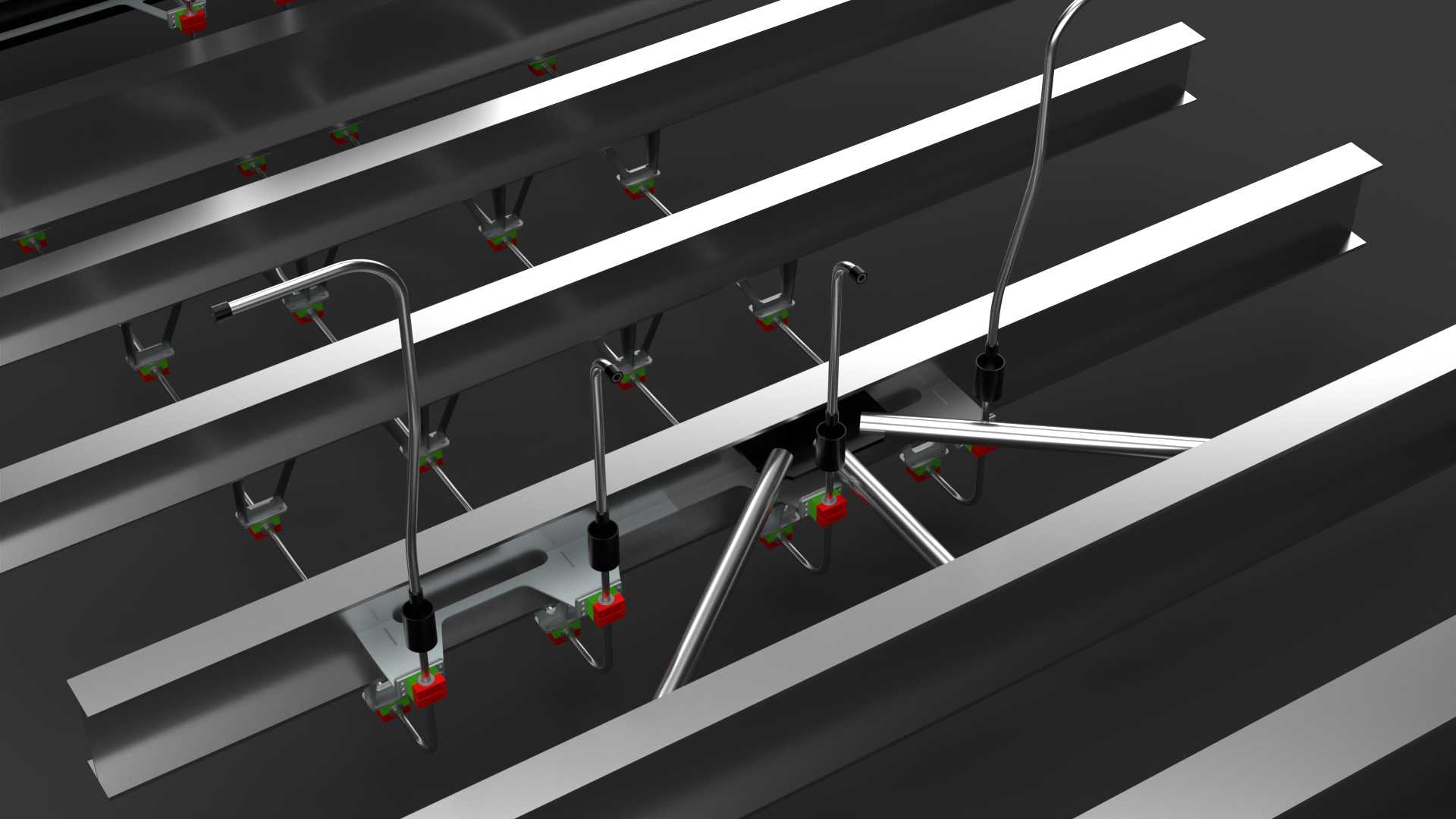

Top view

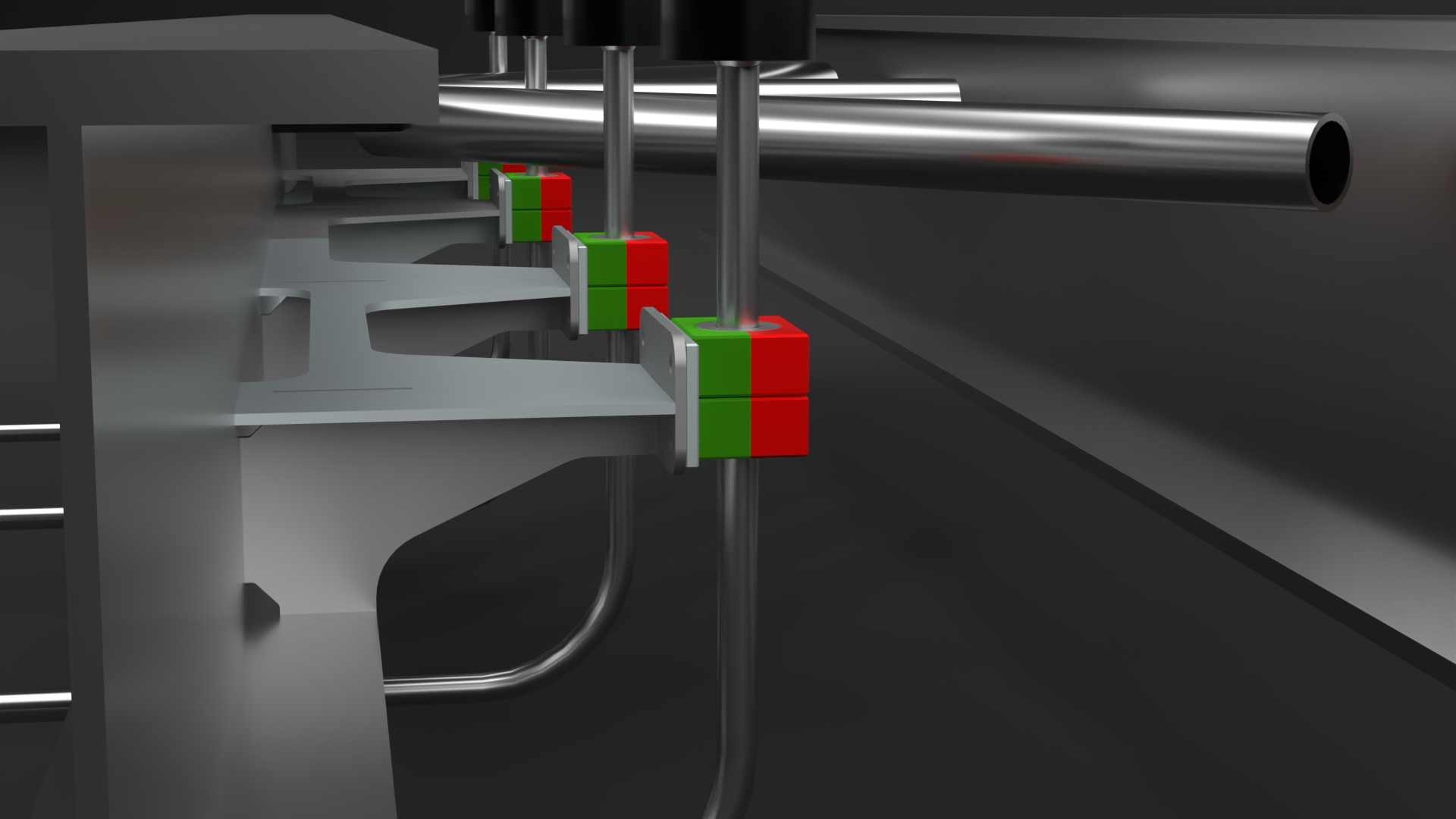

Close up
Below - Custom pipe design
Top view
Close up
Below - Custom pipe design
Top view
